Girder Trolleys
- Crane girder trolleys are made in the same industry-leading power-coated finish as our chain and lever blocks.
- Designed to function in the harshest industrial environments.
- All trolleys are protected by anti-drop plates, guaranteeing the safety of those below.
- Bearings are smooth and robust, allowing easy manual handling of heavy loads.
GIRDER TROLLEYS | ||||
MODEL | CT01 | CT02 | CT03 | CT04 |
Rated Capacity (kg Working Load Limit) | 1000kg | 2000kg | 3000kg | 4000kg |
Min Radius of Curve | 1.0m | 1.1m | 1.3m | 1.4m |

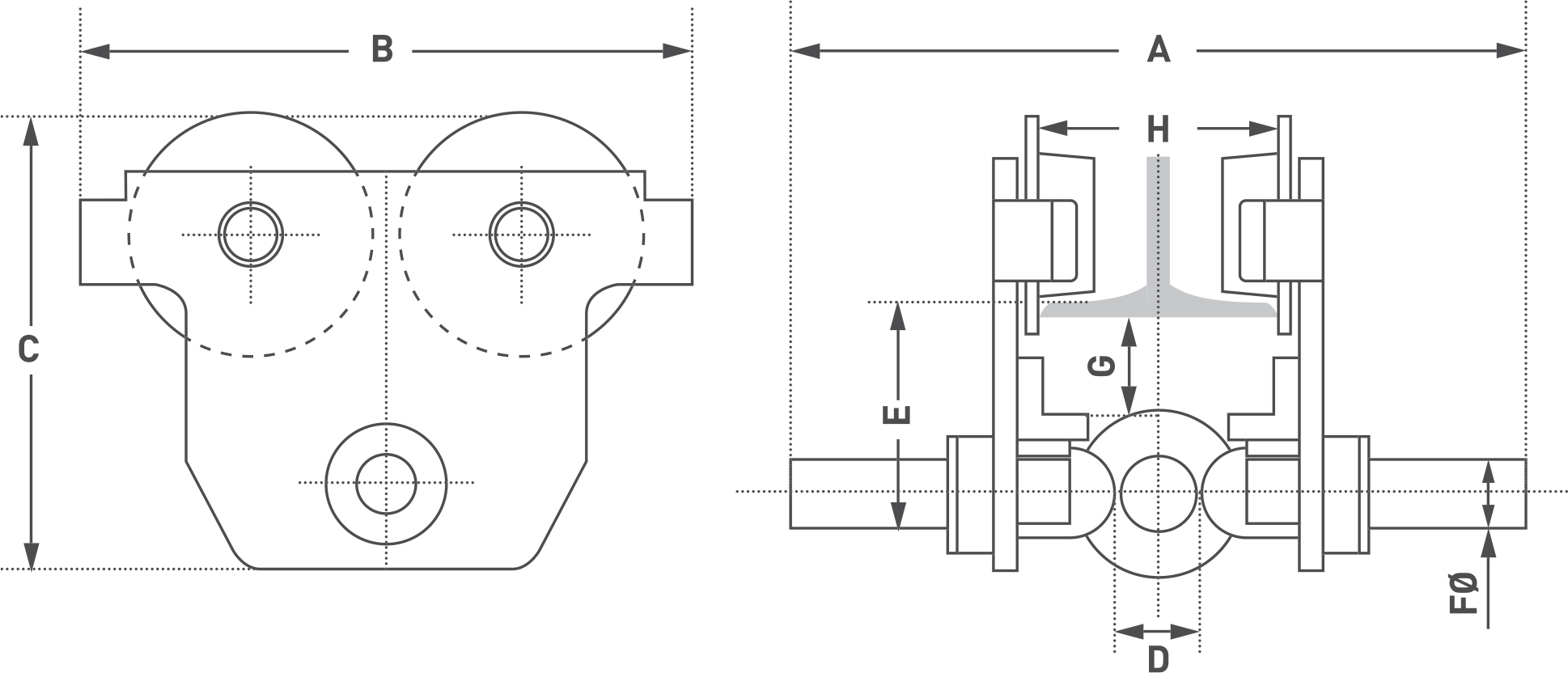

Dimension A | 302mm | 314mm | 328mm | 346mm |
Dimension B | 249mm | 276mm | 335mm | 377mm |
Dimension C | 174.5mm | 199mm | 233.5mm | 260mm |
Dimension D | 30mm | 40mm | 46mm | 52mm |
Dimension E | 50mm | 94mm | 107mm | 120mm |
Dimension F (Diameter) | 36mm | 48mm | 58mm | 65mm |
Dimension G | 33mm | 34mm | 35mm | 37mm |
I Beam Width Range - Dimension H | 58mm - 220mm | 66mm - 220mm | 74mm - 220mm | 90mm - 220mm |
Net Weight | 8kg | 14kg | 22kg | 35kg |

SKU | CT01-Parent |
Brand | CRANE |
