Safety & Compliance

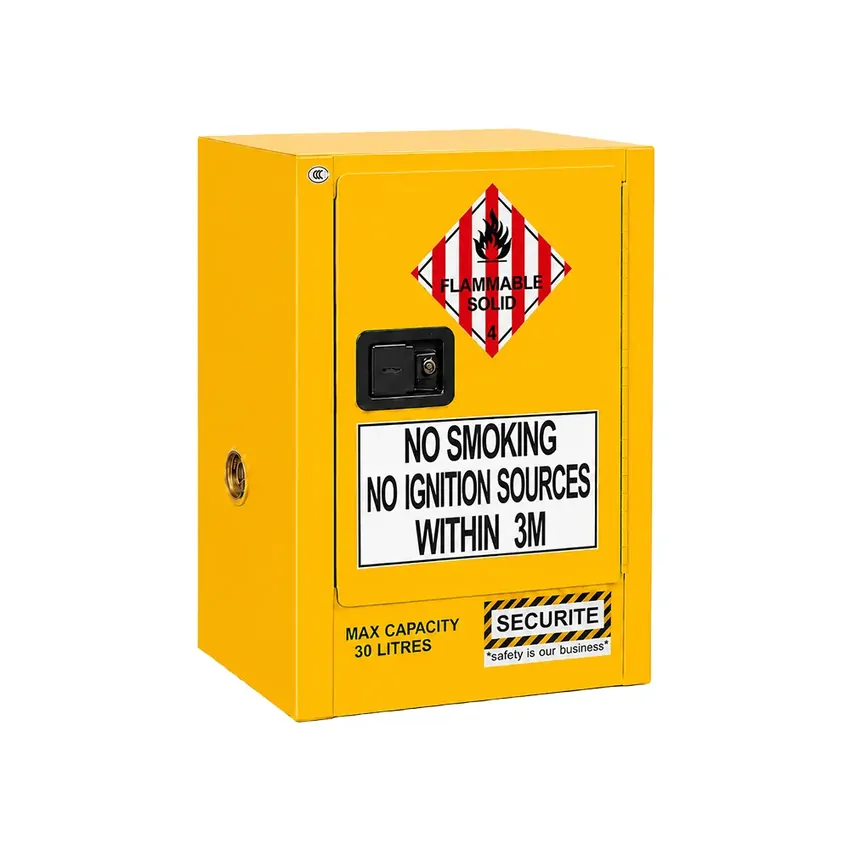

• SECURiTE FGFS30L dangerous goods cabinet for safe storage and segregation of Class 4 flammable solids.
• Fully compliant with AS/NZS 1940:2017 standards.
• Multiple units supplied to customers requiring WorkSafe NZ approval.
• 30L capacity suits smaller storage requirements and locations with limited floor space.
• Dedicated storage helps address workplace safety and compliance risks associated with improperly stored flammable solids.
• Helps organise dangerous goods and separate them from incompatible substances.

Shelf Design & Construction

V-Groove Channel Shelves:

• Reinforced using precision-formed “V” groove channels.
• Provides greater structural strength compared to flat-sheet shelving.
• Supports containers of flammable solids and helps direct residue towards the drainage holes.

Punched Drainage Holes:

• Positioned to allow residue to pass from the shelf grooves into the bunded base.
• Works with the channelled shelves to support containment and easier cleaning.

Primary Safety Functions:

• Residue Containment: Bunded base and channelled shelving help contain residue and debris, reducing the risk of material escaping the cabinet and reaching ignition sources.
• Heat & Ignition Protection: Double-walled steel construction reduces heat transfer, while flame-arrestor vents help prevent external flame propagation into the cabinet.
• Static Control: Earthing points provide a grounding connection to dissipate static electricity and reduce ignition hazards.
• Safe Storage Practices: Encourages proper housekeeping by keeping flammable solids organised and separated from incompatible substances.

Cabinet Features

• Flame-Arrestor Vents - Integrated vents fitted with flame-arresting mesh for controlled ventilation.
• Earthing Points - Allows grounding to dissipate static electricity and reduce ignition hazards.
• Adjustable Shelving - One height-adjustable shelf provides flexible configuration according to container size.
• Adjustable Feet - Allows stable placement on uneven surfaces.
• Bunded Base Section
  • Collects residue and debris within the cabinet.
  • Easy access for cleaning and removal of collected material.
• Double-Walled Steel Construction
  • Creates an insulating air gap to reduce heat transfer.
  • Enhances fire resistance and cabinet integrity.

Applications

• Storage of Class 4 flammable solids, including matches, metallic powders, and self-reactive or readily combustible substances.
• Workshops, laboratories, industrial facilities, transport hubs and manufacturing plants.
• Compact storage for smaller workshops, secondary storage areas and locations with limited floor space.
• Workplaces requiring dedicated storage and segregation of flammable solids.
• Stocked and available across Australia and New Zealand.

Other Available Capacities

• Larger Storage Requirements: 60L (FGFS60L), 100L (FGFS100L), 160L (FGFS160L) and 250L (FGFS250L) flammable solids cabinets.
