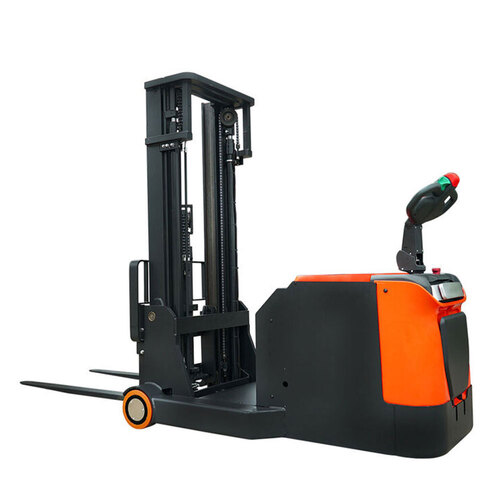

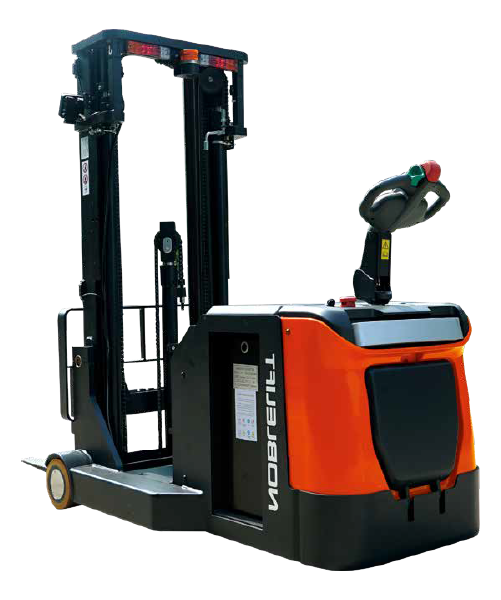

  • The main feature of this stacker is the compact structure, which provides you with an excellent operating experience while ensuring a high configuration.
  • Faster+ High efficiency with German motor! Upgraded speed of 8km/h for Ride-on Mode.
  • Compact design: small wheelbase and small turning radius requirements for the small aisle, practical and applicable.
  • With high-quality components, excellent cost performance.
  • Fast driving speed, full load 7km/h, no-load 8km/h, high efficiency.
  • It adopts the overall mast forward and backward structure, which is in high stability and safer.
  • The side battery extraction structure is adopted, and the battery replacement efficiency is fast and convenient.

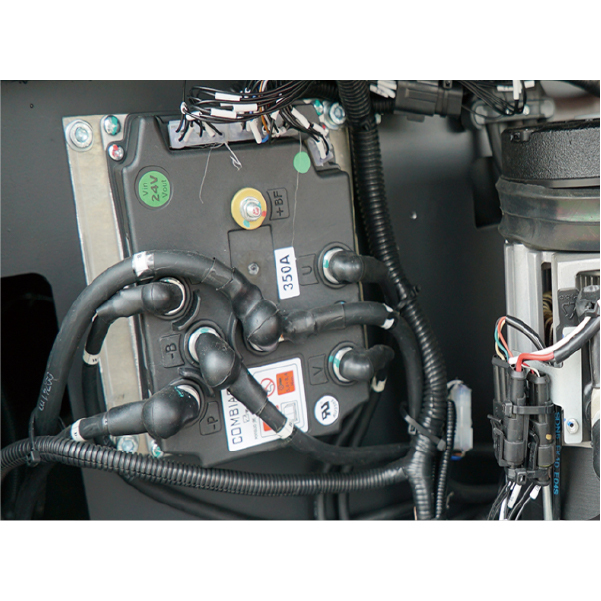

  • Italian ZAPI Controller helps you operate smoothly, ZAPI Battery discharge indicator with hour meter.
  • A Ride-on Platform is installed to ensure you work safe and effortless.
  • Featured an auto-filling system battery.
  • Electric Power Steering.
  • Emergency power disconnect.
  • The ergonomic control handle is equipped with a horn and a belly button.
  • Dual butterfly-style thumb controls.
  • 4500mm - Triple stage masts FFL.
  • The hydraulic system with full proportional lifting can realize precise positioning during lifting and lowering.











DATA SHEET

Model PS16CB-45
Capacity 1600kg
Power Electric
Driving Method Pedestrian/Standing
Mast Stage 3
Load Center Distance 500mm
Load Wheel 230 x 100mm
Front overhang 150mm
Wheelbase 1450mm
Lowered Mast height 2108mm
Free Lift Height 1500mm
Lift Height 4500mm
Lowered height 60mm
Overall length 2790mm
Overall width 1090mm
Fork dimensions 35/100/950mm
Fork Length 915mm
Turning radius 1705mm
Travel speed,laden/unladen 7/8km/h
Lift speed,laden/unladen 120/200mm/s
Lowering speed,laden/unladen 300/200mm/s
Max.gradeability,laden/unladen 6/15%
Battery 24V/200Ah Li and 24V/80Ah Charger
Travel Speed 7km/h (unloaded), 8km/h (fully loaded)
Service brake Electromagnetic
