  • Flat deck Electric Drive
  • Powerful 400W motor
  • Double Scissor Lift action for extra lift height
  • Single Handle - Large Deck Size
1.Specifications:
1) Product size:1340x600x1110MM
2) Min plate height:460MM
3) Max plate height:1580MM
4) Plate size:1100x600MM
5) Max loading capacity:400KG
6) Motor in driving:400W
7) Motor in lifting:800W
8) Lifting time:17s
9) Battery:2x12V  40Ah
10) Controller:70A
11) Charger time:8.5Hours
12) Pump max pressure:20Mpa
13) Max working temperature:80oC

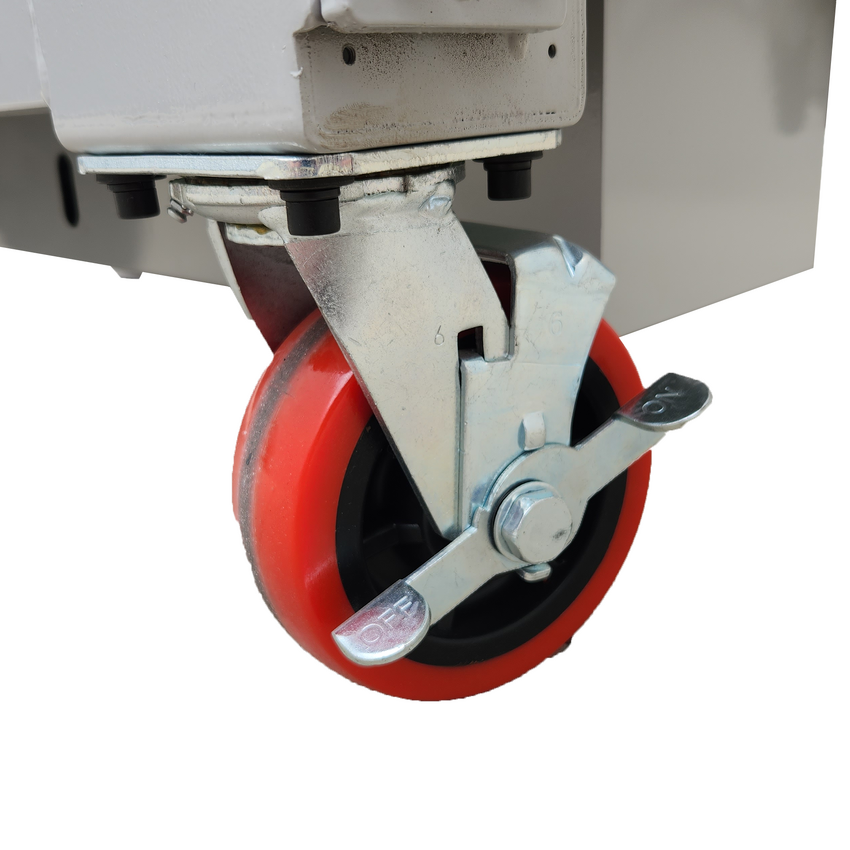

14)  10' front wheel and back Rear Caster with brake
15) Max forward/backward speed: 5~8km/h
16) Max Climbing capability: 6o
17) Working noise: 40~50DB
18) With the electromagnetism cross valve
29) Both Lift and Move by Charge





Capacity

Dimensions (mm)

Deck Size (mm)

Motor (lifting / Driving)

Battery

Table Height Range (mm)

Weight

400kg 1340 x 600 x 1100 1000 x 600 800W / 400W 2 x 12V/33Ah 460 - 1600  234kg
SKU HG116
