- Perfect for light-duty application, Compact & light service weight.
- High maneuverability, ideal for use on mezzanines.
- The ultimate solution for light-duty operations.
- American Curtis Travel Controller with CAN-bus Control.
- Centred motor with excellent traction and stability, installed with 24V DC permanent magnetic drive motor.
- Operator protection Plexiglass.

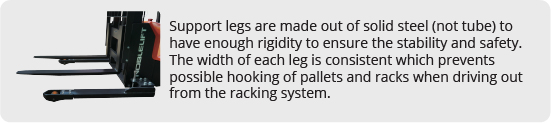

- Adjustable base legs.
- Smart handle with Pin-Code Panel limits access to approved personnel.
- Smart handle with LCD with battery indicator, hour meter as well as fault code.
- Drive with the tiller in a vertical position.
- Equipped the ergonomic control handle with horn & emergency belly button.
- Dual buttery-style thumb control for travelling.
- Electric Lifting and Lowering Buttons.
- 24V/60Ah LFP Lithium Battery with 24V/25A charger, fast charging 2.5 hours only.
DATA SHEET
Model | PSE12N-32 |
Capacity (kg) | 1200kg |
Mast Lift Height | 3200mm |
Mast Stages | 2 |
Lowered Mast Height | 82mm |
Operator Type | Pedestrian |
Fork Dimensions | 40 x 100 x 1150mm |
Fork Length | 1150mm |
Adjustable Base Legs I.D. | 980 - 1270mm |
Adjustable Base Legs O.D. | 1170 - 1473mm |
Turning Radius | 1345mm |
Overall Width | 800mm |
Drive Tire | 210 x 70mm polyurethane |
Load Wheels | 84 x 70mm polyurethane |
Lift Speed (Laden/Unladen) | 110/160 mm/s |
Lowering Speed (Laden/Unladen) | 130/110 mm/s |
Lift Motor | 2.2kw |
Battery | 24V/60Ah LFP Lithium Battery with 24V/25A charger |
Travel Speed | 4.2km/h(unloaded), 4.5km/h (fully loaded) |
Parking Brake | Electromagnetic |
SKU | PSE12N-32 |
Brand | NOBLELIFT |
